Features

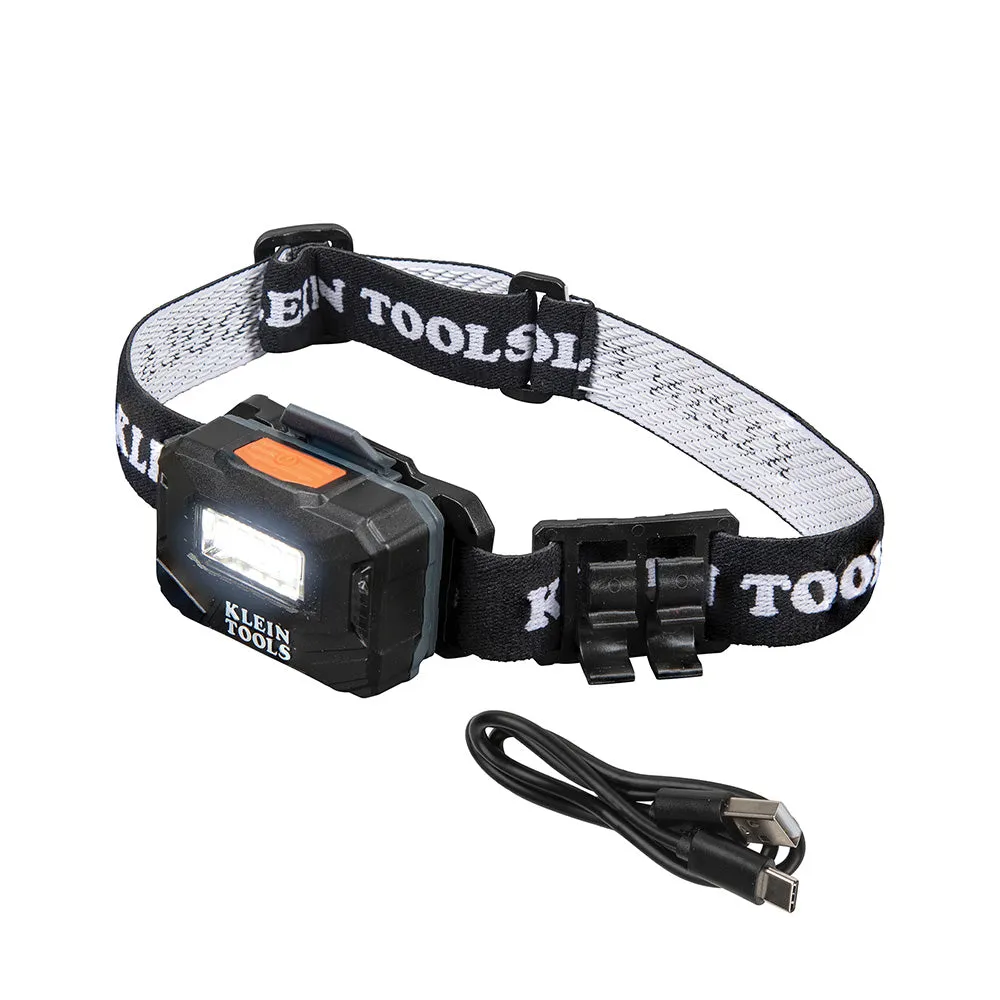

Klein Tools™ Rechargeable Light Array Headlamp with its unique LED pattern offers a more usable light field. You™ll know when it™s time to recharge the lamp, because the LED lights on the battery gauge clearly indicate how much battery you have left. Easily remove headlamp from the strap bracket and mount it directly to a Klein Hard Hat, or mount with the backside magnet to use as a work light. The adjustable, comfort fabric strap comes with a handy holder for your marker and carpenter™s pencil.

• Rechargeable headlamp with a rectangular light array offers more usable light field
• LED Light's adjustable fabric strap with silicone grip comes equipped with a convenient marker and carpenter's pencil holder
• Mounts magnetically with a strong backside magnet for use as a work light
• Smartly designed headlamp bracket also attaches directly to Klein® Hard Hats equipped with front/back mounts
• Battery gauge indicates level of battery life with colored LED lights
• Slimmer profile light with pivoting mount allows up to a 64-Degree lighting angle
• Bright all-day light: 260 lumens for 9 hours and 125 for a long 14 hours
• Light can be easily removed from bracket for recharging via USB-C cable (included)
• Durable headlamp: drop-test rating of 6-Feet (1.8 m), dust and water resistant

Specifications

• Warning: See instructions for a list of warnings
• Special Features: Light Array, Magnet, Battery Gauge; Fabric Strap with Pencil/Marker Holder
• Battery Life: High: 9 hr; Low: 14 hr
• Bulb Type: LED
• Overall Width: 1.28" (3.3 cm)
• Weight: 0.4 lb (0.2) kg
• Batteries: Lithium-Ion
• Standard: BC, CE, NR Can, REACH, RoHS
• Material: ABS
• Application: Head Light; Work Light Headlamp
• Included: Rechargeable Lamp, Bracket, Fabric Strap, Pencil/Marker holder, USB Charging Cord; Instruction Manual
• Overall Length: 2.60" (6.6 cm)
• Temperature Range: Operating/Charging: 32° to 113°F (0° to 45°C); Storage: 14° to 131°F (-10° to 55°C)
• Lumens: High: 260; Low: 125
• Overall Height: 2.08" (5.3 cm)
• Drop Protection: 6' (1.8 m)
• Type: Headlamp with Rechargeable Internal Battery
• Battery Weight: 1.1 oz (30.6 g)
• Number of Lithium-Ion Cells: 1
• Style_Name: Headlamp
• Battery Type: Lithium-Ion
• Lithium Battery Package: Contained in Product
• Lithium Content (Watt Hours): 4.44 Wh
• Lithium Content (mAh): 1200 mAh
