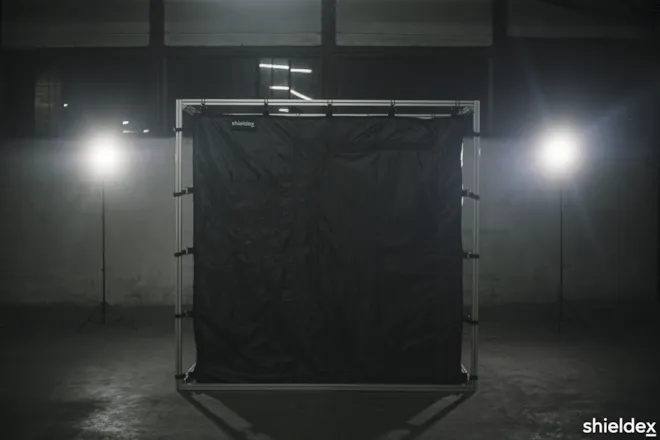

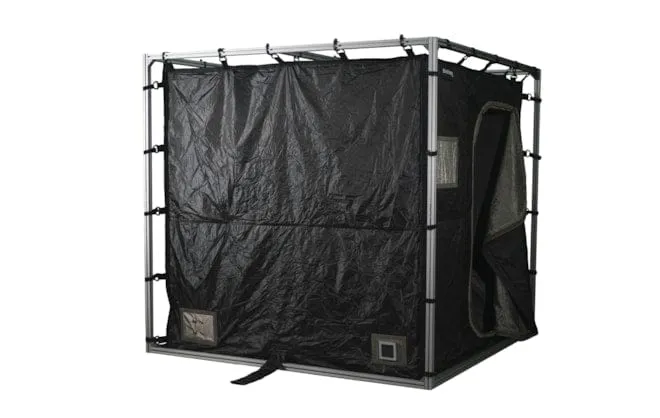

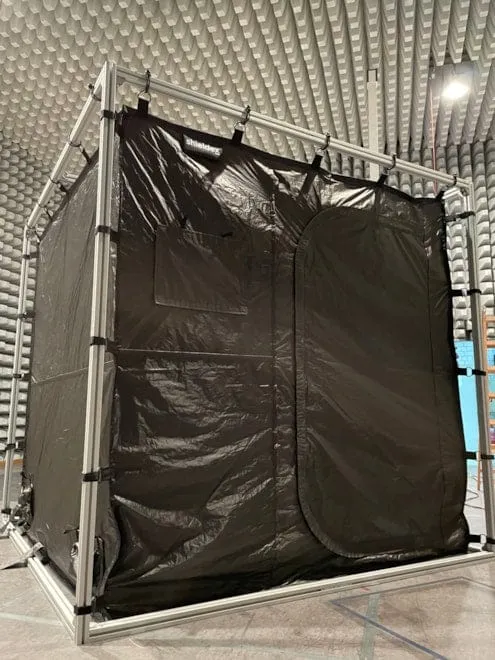

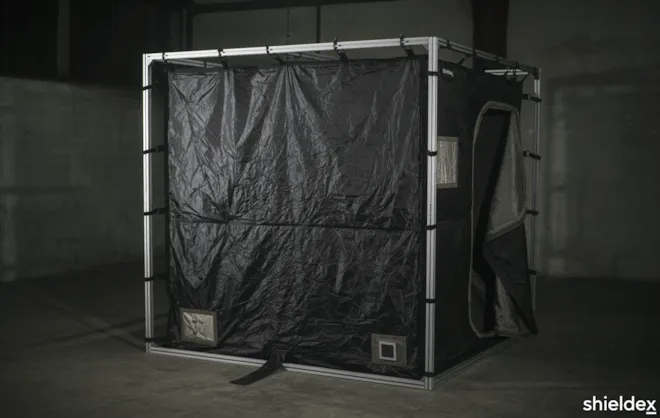

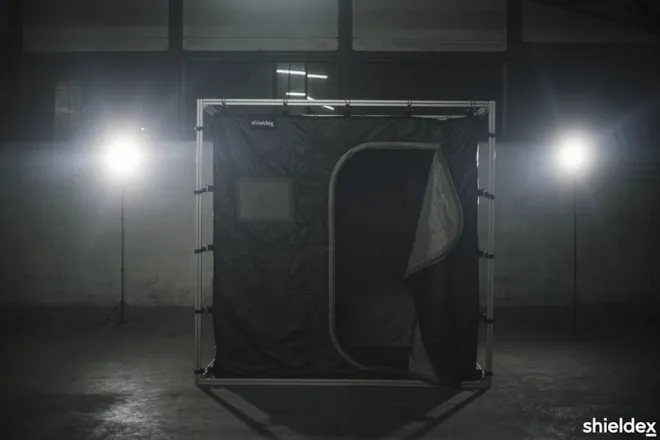

The Shieldex P-Series EMC Shielding Tent offers professional protection against electromagnetic interference, combining unique technology and functional design. With the best available components and the highest quality standards in mind, Shieldex EMC solutions provide user-friendly performance without compromising on effectiveness.
Features
- External dimensions of the frame: 2390 x 2390 x 2300 mm (h x w x d)
- Internal dimensions of the tent: 2150 x 2150 x 2180 mm (h x w x d)
- Two- or three-layer construction:
- Double layer: Shieldex Nora Dell RS CR and Shieldex Berlin RS materials
- Triple layer: Shieldex Nora Dell RS CR, Shieldex Zell RS, and Shieldex Berlin RS materials
- Suitable for use in clean rooms according to A 300 (class 1000) standards
- Average shielding of 85 dB for double layer and 95 dB for triple layer in the frequency range of 0.3 to 18 GHz
- Customizable with your own logo
Versatility
Shieldex tents can be configured to suit your specific needs, whether you require a small table tent for precise measurements on small objects or a large tent for measuring bulky objects such as heavy trucks and satellites. Shieldex EMC shielding fabrics transform any room into a measurement laboratory.
Flexibility
Unlike most shade tents, Shieldex tents are designed to allow for a wide variety of shade configurations without sacrificing quality or performance. By using Shieldex tents for pre-certification compliance testing in the product development phase, complex and costly EMC testing can be avoided.
Optional Add-Ons
- Ventilation Kit: Includes honeycomb vents for the P-Series tent
- Removable I/O Panel: Blank panel with connectors available upon request, compatible with the P-Series
- Transportation Case: Wooden flight case on wheels for transporting the P-Series tent
Customization Options
- Size: The outer and inner dimensions of the P-Series tent can be customized according to requirements
- Shielding Material: The number of layers and specific Shieldex shielding fabrics used can be tailored to meet shielding performance needs
- Additional Components: Items like windows, lights, flooring, and cable management solutions can be incorporated into a custom P-Series design
Downloads and Links
Datasheet - RF Enclosure Person Tent Double Layer.pdf (279kB)
Datasheet - C EMC RF Enclosure.pdf (485.4kB)
Datasheet - RF Enclosure Person Tent Triple Layer.pdf (335.2kB)
More information on the manufacturer’s website
